H91 stainless steel high pressure ferrule check valve

时间: 2022-12-09 18:27:56 作者:超级管理员 来源:本站 点击: 361 次

H91 stainless steel high pressure ferrule check valve

Product Name: stainless steel high pressure ferrule check valve

Product model: H91

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Product Description:

H91 stainless steel high-pressure ferrule check valve refers to a check valve connected by ferrule, and the opening and closing parts open or close automatically by medium flow and force to prevent medium backflow. The ferrule check valve is an automatic valve, which is mainly used on the pipeline with one-way flow of medium. The medium is only allowed to flow in one direction to prevent accidents.

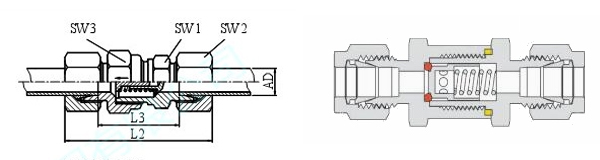

Structural drawing of h91 stainless steel high pressure ferrule check valve:

H91 stainless steel high pressure ferrule check valve

H91 stainless steel high pressure ferrule check valve parts material:

Part NameStainless steel
NutSS304  SS304L SS316  SS316L SS321
Dual card combinationSS304  SS304L SS316  SS316L SS321
Valve bodySS304  SS304L SS316  SS316L SS321
Valve seatSS304  SS304L SS316  SS316L SS321
NutSS304  SS304L SS316  SS316L SS321
springSS304  SS304L SS316  SS316L SS321
DiscSS304  SS304L SS316  SS316L SS321
Stem packingPTFE
CollarSS304  SS304L SS316  SS316L SS321
O-ringfluororubber/FKM

https://en.kataoqiufa.cn/
