Q11SA internal thread air supply ball valve

时间: 2022-12-09 18:15:59 作者:超级管理员 来源:本站 点击: 804 次

Q11SA internal thread air supply ball valve

Product name: Internal thread air supply ball valve

Product model: Q11SA

Connection method: internal thread

Structural feature: thread

Product material: stainless steel 304/316

Thread standards: G, NPT, BSPT, BSP, DIN

Product pressure: ≤6.4 Mpa

Working temperature: ≤120℃

Use medium: water, oil, weak corrosive medium, etc.

Handle material: 304, 201

Handle color: blue, red, yellow

Product Description:

Q11SA internal thread air source ball valve is a valve that uses a sphere with a circular channel as the opening and closing part, and the sphere rotates with the valve stem to realize the opening and closing action. The opening and closing part of the ball valve is a holed sphere, which rotates around the axis perpendicular to the passage, so as to achieve the purpose of opening and closing the passage. Ball valves are mainly used to cut off or connect pipelines and equipment media, and can also be used for fluid adjustment and control. Ball valves have low fluid resistance, simple structure, small size, light weight, tightness and reliability, convenient operation and maintenance, and will not cause damage to the valve sealing surface. Erosion, a wide range of applications.The ball valve is mainly used to cut off, open, close, distribute and change the flow direction of the medium in the pipeline. The ball valve is a new type of valve that has been widely used in recent years.

Advantages of Q11SA internal thread air source ball valve:

1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.

2. Simple structure, small size and light weight.

3. It is tight and reliable. At present, the sealing surface material of the ball valve is widely used in plastics, with good sealing performance, and it has also been widely used in the vacuum system.

4. Convenient operation, rapid opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for remote control.

5. Convenient maintenance, simple structure of the ball valve, the sealing ring is generally movable, it is convenient to disassemble and replace.

6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes, it will not cause erosion of the valve sealing surface.

7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should show a spherical surface at the entrance and exit, so as to cut off the flow.

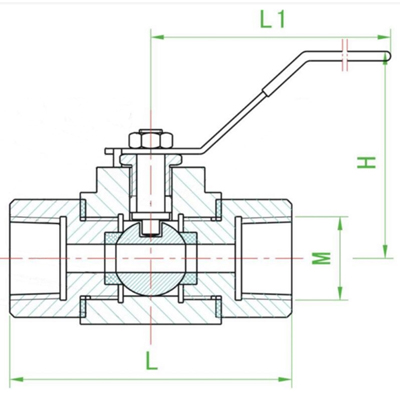

Q11SA internal thread air source ball valve structure diagram:

Q11SA internal thread air supply ball valve

Q11SA internal thread air source ball valve parts material:

Part NameStainless steelCarbon steel
Valve bodySS304 SS304L SS316 SS316L SS32120# A105
capSS304 SS304L SS316 SS316L SS32120# A105
Valve seatPTFEPTFE
ballSS304 SS304L SS316 SS316L SS32120# A105
Bonnet gasketPTFEPTFE
StemSS304 SS304L SS316 SS316L SS32120# A105
Glam NutSS304 SS304L SS316 SS316L SS32120# A105
Positioning pinSS304 SS304L SS316 SS316L SS32120# A105
handleSS304 SS304L SS316 SS316L SS32120# A105
NutSS304 SS304L SS316 SS316L SS32120# A105
fillerPTFEPTFE

Q11SA internal thread air source ball valve connection size:

Nominal diameterMLL1H
DN6ZG3/86811044
DN10ZG1/28011046
DN15ZG3/48011046
DN20ZG19411056
